Motor Protection Grade

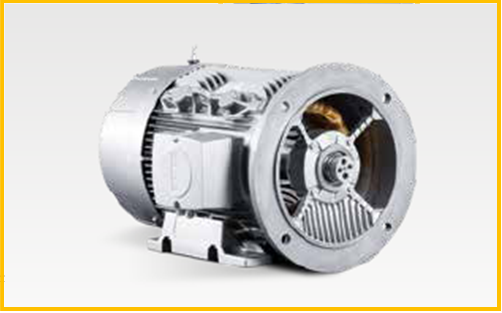

The protection level of the air compressor motor is an important indicator to measure the protection ability of the motor housing against solid foreign objects (including human parts), dust and water, which is directly related to the operating safety and service life of the motor. In industrial environments, motors are often faced with various potential damage factors, such as dust, moisture, oil, corrosive gases, mechanical collisions, etc. Therefore, choosing a suitable motor protection level is of great significance to protect the motor from external environmental factors and ensure its long-term stable operation. This article will discuss in detail the definition, classification, selection basis and practical application precautions of the air compressor motor protection level.

1. Definition and classification of protection level

The protection level of the motor is usually expressed by the IP (Ingress Protection) code formulated by the International Electrotechnical Commission (IEC). The IP code consists of two numbers, the first number indicates the protection level against the ingress of solid foreign objects and human parts, and the second number indicates the protection level against the ingress of water.

 1.1 Meaning of the first number

0: No protection

1: Prevent solid foreign objects larger than 50mm

2: Prevent solid foreign objects larger than 12.5mm

3: Prevent solid foreign objects larger than 2.5mm

4: Prevent solid foreign objects larger than 1.0mm

5: Prevent dust from entering (it cannot completely prevent dust from entering, but the amount of dust entering will not cause harmful effects on the equipment)

6: Completely prevent dust from entering

1.2 Meaning of the second number

0: No protection

1: Prevent vertical water drops

2: Prevent water drops in the inclined direction within 15 degrees

3: Prevent water jets

4: Prevent water splashes

5: Prevent water jets from entering from any direction

6: Prevent water jets from entering from any direction

7: Prevent the impact of short-term immersion in water

8: Prevent long-term use in water

2. Selection basis

The selection of motor protection level should be based on the working environment and operation requirements of the air compressor. For example:

Indoor dry environment: IP20 or IP21 is sufficient to meet the protection requirements of most indoor air compressor motors.

Dusty environment: In dusty industrial environments, it is recommended to select IP54 or higher protection level to prevent dust and water from splashing into the motor.

Wet or outdoor environment: For air compressors installed in wet environments or outdoors, IP55 or higher protection level should be selected to prevent water splashing and rain from entering.

3. Precautions in practical applications

3.1 Environmental assessment

Before selecting the motor protection level, the working environment of the air compressor should be evaluated in detail, including but not limited to factors such as temperature, humidity, dust, corrosive gases, etc., to ensure that the motor protection level can meet actual needs.

3.2 Installation and maintenance

Proper installation and regular maintenance are the key to ensuring the effectiveness of the motor protection level. The motor should be installed correctly according to the manufacturer's instructions to avoid damage to the motor housing during installation. Regularly check the sealing of the motor housing, replace damaged seals in time, and maintain the motor's protection level.

3.3 Additional protection measures

In extreme environments, in addition to selecting motors with high protection levels, additional protection measures should be considered, such as installing waterproof covers, dust covers, or using motor housings made of special materials to further improve the protection capabilities of the motors.

The protection level of the air compressor motor is an important guarantee to ensure the safe and stable operation of the motor in various working environments. Reasonable selection of the motor protection level can not only protect the motor from damage by external environmental factors and extend the service life of the motor, but also improve the operating efficiency and safety of the air compressor. In practical applications, the working environment, operating requirements and maintenance costs should be comprehensively considered to select the most appropriate motor protection level, and necessary installation and maintenance measures should be taken to ensure the effectiveness of the motor protection level and provide reliable power support for industrial production. With the continuous advancement of technology, future air compressor motors will pay more attention to the improvement of protection performance to adapt to more complex and harsh industrial environments, and provide more stable and efficient power guarantees for the development of industrial automation and intelligence.
