Comparison of single stage compression and double stage compression in screw air compressor

Screw air compressor is commonly used in the industrial field of air compression equipment, widely used in manufacturing, construction, transportation and other industries. In screw air compressors, single-stage compression and double-stage compression are two common compression methods. In this paper, the single-stage compression and double-stage compression of screw air compressors will be deeply compared from the working principle, performance characteristics, energy consumption, maintenance and application fields, in order to provide valuable references for practitioners in related fields.

1. Comparison of working principles

Single stage compression:

The working principle of single-stage compression screw air compressor is relatively simple. The air enters the air compressor through the air inlet and is directly compressed by the screw rotor once, and the suction pressure is directly raised to the exhaust pressure. In the process of single-stage compression, a closed compression chamber is formed between the screw rotor and the housing. With the rotation of the screw, the volume of the compression chamber is gradually reduced, so as to realize the compression of gas.

Two-stage compression:

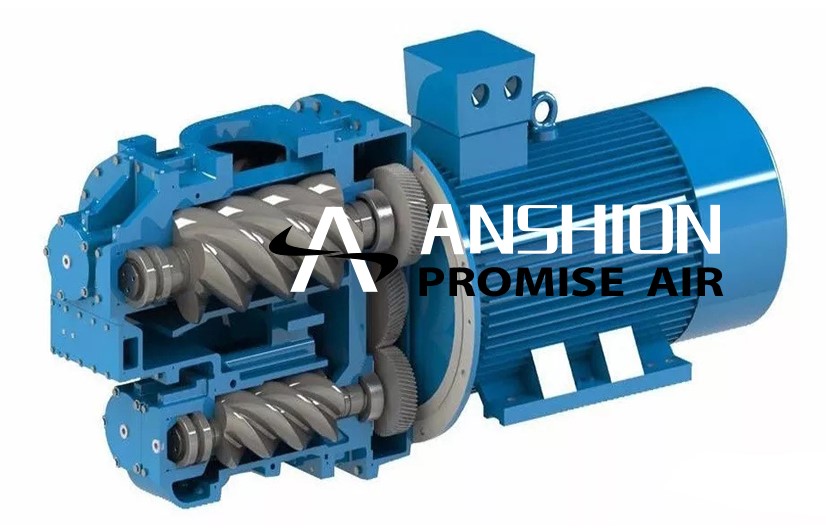

The working principle of the two-stage compression screw air compressor is more complex. The air first enters the primary compression stage, is initially compressed to a certain pressure level, and then cooled by an interstage cooler. The cooled air enters the secondary compression stage, where it is further compressed to the final exhaust pressure. In the two-stage compression process, the compression ratio at each stage is relatively low, reducing heat generation and internal leakage, and improving the compression efficiency.

2. Comparison of performance characteristics

Compression efficiency:

Two-stage compression screw compressors are usually more energy efficient and efficient than single-stage compressors. Two-stage compression reduces the compression ratio of each stage through segmented compression, reducing heat and internal leakage, thereby improving the compression efficiency. In contrast, the single-stage compression ratio is relatively large and may lead to higher warming and energy consumption.

Energy consumption:

The two-stage compression screw air compressor performs better in terms of energy consumption. Because the two-stage compression process is closer to the ideal isothermal compression process, the heat loss in the compression process is reduced, so the energy consumption is relatively low. In the single-stage compression process, the temperature of the compressed air may be higher, requiring more cooling, which increases energy consumption.

Noise and Vibration:

The noise and vibration of the two-stage compression screw air compressor are relatively small. Noise and vibration levels are lower because the two-stage compression process is smoother, reducing collision and friction between rotors. In contrast, friction and collision between the screw rotor and the housing during single-stage compression may lead to greater noise and vibration.

Stability and reliability:

Two-stage compression screw air compressor has higher stability and reliability. In the two-stage compression process, the compression ratio at each stage is relatively low, reducing the load and wear of the rotor, thereby improving the stability and reliability of the equipment. In the process of single-stage compression, due to the large compression ratio, the load and wear of the rotor may be larger, which affects the stability and reliability of the equipment.

Maintenance and maintenance:

The maintenance and maintenance of two-stage compression screw air compressor is relatively complex. Because more components and pipes are involved in the two-stage compression process, maintenance and maintenance work is more cumbersome. The single-stage compression screw air compressor has a simple structure and a small number of parts, so maintenance and maintenance work is relatively easy.

3. energy consumption comparison

In terms of energy consumption, two-stage compression screw air compressors usually have significant advantages. Due to the reduction of heat generation and internal leakage during the two-stage compression process, the compression efficiency is improved, so the energy consumption is relatively low. In contrast, the single-stage compression process requires more cooling and energy consumption due to large compression ratio and higher temperature rise. In addition, two-stage compression screw air compressors usually use advanced control systems and energy-saving technologies, further reducing energy consumption.

4.maintenance comparison

In terms of maintenance, single-stage compression screw air compressors are relatively easy. Due to its simple structure and small number of parts, maintenance and maintenance work is relatively easy to carry out. Due to the complex structure of the two-stage compression screw air compressor, it involves more components and pipelines, so the maintenance and maintenance work is relatively complicated. However, with the continuous progress of technology and the improvement of manufacturing process, the maintenance of two-stage compression screw air compressors has become more and more simple and convenient.

5.Comparison of application fields

Single-stage compression using screw air compressor:

The single-stage compression spiral air compressor is suitable for the occasions where the compressed air quality is not high and the compression ratio is low. For example, in some small air compression systems, laboratory equipment, medical equipment and other fields, single-stage compression screw air compressors can meet the basic needs of compressed air. In addition, in some occasions where the noise and vibration requirements are not high, single-stage compression screw air compressors also show better performance.

Two-stage compression spiral air compressor:

Two-stage compression spiral air compressors are suitable for applications requiring high compressed air quality, high compression ratios and energy savings. For example, in large air compression systems, industrial automation, textile, pharmaceutical, food and other industries, two-stage compression screw air compressors can meet the needs of efficient and stable gas supply. In addition, in some cases with high noise and vibration requirements, two-stage compression screw air compressors also show better performance.

6. Development trend and technological innovation

With the continuous progress of industrial technology and changes in market demand, screw air compressors are also constantly developing and innovating. On the one hand, while maintaining its advantages of simple structure and convenient maintenance, single-stage compression screw air compressors have also made significant progress in improving compression efficiency and reducing noise and vibration. On the other hand, while maintaining its advantages of high efficiency and stability, double-stage compression screw air compressors are also constantly exploring new materials and manufacturing processes to improve the reliability and service life of equipment.

In addition, the development of intelligent and automation technology has also brought new opportunities and challenges for screw air compressors. Through the introduction of advanced control systems and sensor technology, screw air compressors can achieve remote monitoring and intelligent control, improving the operating efficiency and stability of the equipment. At the same time, with the continuous improvement of environmental awareness, screw air compressors are also constantly exploring new technologies for energy saving and environmental protection to meet more stringent environmental requirements.

In summary, the single-stage compression and double-stage compression of screw air compressors have their own unique advantages and application fields. When selecting an air compressor, it is necessary to comprehensively consider the specific application scenarios and requirements.
