Why must air-cooled air compressors be used with exhaust ducts?

In modern industrial production, air-cooled air compressors (referred to as air-cooled air compressors) are widely used in various manufacturing enterprises because of their advantages of easy installation, easy maintenance and low operating costs. However, when using air-cooled air compressors, many users often ignore the importance of exhaust pipes, thinking that as long as the equipment can run, ignoring the design and installation of exhaust systems. This practice will not only affect the performance and service life of the air compressor, but also may bring safety risks. This paper will discuss the necessity of installing exhaust pipes for air-cooled air compressors from multiple perspectives, and provide operable suggestions to help users correctly design and install exhaust systems to ensure efficient and safe operation of equipment.

First, the working principle and heat dissipation requirements of air-cooled air compressors

1.1 Working Principle

Air-cooled air compressors mainly rely on fans and heat sinks for heat dissipation, and its working principle is as follows:

1. Heat generation: In the process of compressed air, the compressor and the electric machine produce a lot of heat.

2. Heat transfer: Heat is transferred to the heat sink by thermal conduction.

3. Forced convection: The fan blows cold air to the heat sink, taking away heat and achieving heat exchange.

4. Heat discharge: The hot air is discharged from the machine, and the cooled air enters the circulation again.

1.2 Heat Dissipation Requirements

During the operation of the air-cooled air compressor, a lot of heat will be generated, and these heat must be dissipated in a timely and effective manner to ensure the normal operation of the equipment. In general, the heat dissipation requirements of air-cooled air compressors include the following aspects:

1. Control the operating temperature of the device: Ensure that the internal temperature of the device is within the safe range to avoid equipment damage or shutdown due to high temperature.

2. Improve equipment efficiency: Good heat dissipation can improve the working efficiency of the equipment and reduce energy consumption.

3. Extend the life of the equipment: Effective heat dissipation can reduce the wear of the equipment components and extend the service life of the equipment.

Second, the necessity of installing exhaust pipes for air-cooled air compressors

2.1 Improve heat dissipation

Reason analysis:

Hot air accumulation: If the air-cooled air compressor is not installed exhaust pipe, hot air will accumulate around the equipment, resulting in local temperature rise, affecting the heat dissipation effect.

Poor air circulation: there is no exhaust duct, hot air can not be discharged in time, and fresh cold air can not effectively enter the equipment for cooling, resulting in a decrease in heat dissipation efficiency.

Solution:

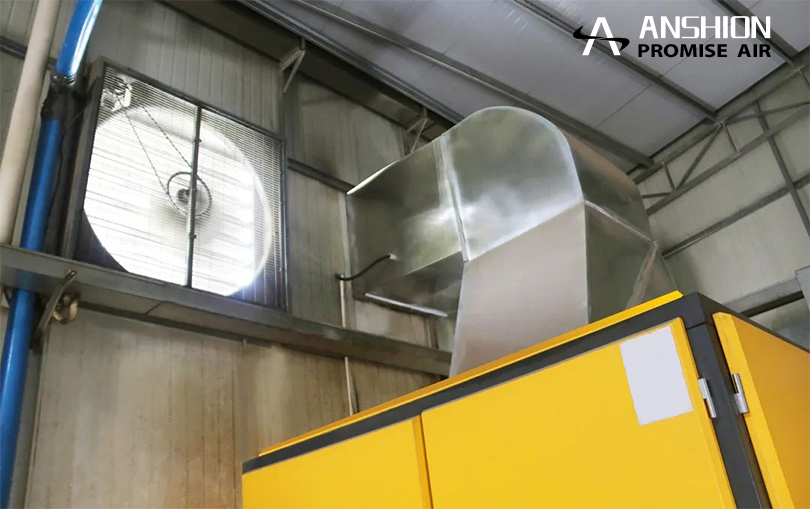

Install exhaust pipes: exhaust hot air directly from the outdoor or designated area to avoid hot air accumulation, improve air circulation around the device, and improve heat dissipation.

Design exhaust pipes properly: Design the length, diameter, and layout of exhaust pipes according to the heat dissipation requirements of the device to ensure smooth discharge of hot air.

2.2 Lower the Operating temperature of the device

Reason analysis:

High temperature environment: If the hot air cannot be discharged in time, the ambient temperature around the device will rise, resulting in an increase in the operating temperature of the device.

Device overheat: A high temperature environment increases the heat dissipation burden of the device, resulting in device overheat, which affects the normal running of the device.

Solution:

Effective discharge of hot air: Install exhaust pipes to discharge hot air outdoors or away from the device area to reduce the ambient temperature.

Control device temperature: Good heat dissipation can effectively control the operating temperature of the device to ensure that the device operates within the safe temperature range.

2.3 Improving device efficiency

Reason analysis:

Poor heat dissipation: Poor heat dissipation will cause the internal temperature of the equipment to rise, affecting the efficiency of the compressor and the motor.

Increased energy consumption: The device temperature increases, which increases energy consumption and operating costs.

Solution:

Optimize heat dissipation effect: Install exhaust pipes to optimize heat dissipation effect, reduce the operating temperature of the device, and improve the working efficiency of the device.

Reduce energy consumption: Good heat dissipation can reduce equipment energy consumption and save operating costs.

2.4 Extending the service life of the device

Reason analysis:

High temperature wear: High temperature will lead to increased wear of equipment components, shorten the service life of the equipment.

Device faults: Poor heat dissipation may cause frequent device faults, increasing maintenance costs.

Solution:

Reduce the operating temperature: Install exhaust pipes to reduce the operating temperature of the device, reduce component wear, and extend the service life of the device.

Reduce the occurrence of failures: Good heat dissipation can reduce the incidence of equipment failures and reduce maintenance costs.

2.5 Improve the working environment

Reason analysis:

Hot air emission: If there is no exhaust duct, hot air will be directly discharged to the work area, resulting in an increase in the temperature of the working environment, affecting the work comfort and health of employees.

Air quality: Pollutants such as oil mist and dust in hot air can also affect the air quality of the working environment.

Solution:

Centralized discharge of hot air: Through the installation of exhaust pipes, the hot air is centrally discharged to the outdoor or designated areas to improve the working environment temperature.

Filter pollutants: Install a filter in the exhaust pipe to remove pollutants such as oil mist and dust in the hot air to improve air quality.

Third, how to correctly design and install exhaust pipes?

3.1 Pipe diameter

Heat dissipation according to the equipment: Select the appropriate diameter of the exhaust pipe to ensure that the heat generated by the equipment can be effectively discharged.

Refer to the equipment manual: Select the appropriate pipe diameter by referring to the recommendations in the equipment manual.

3.2 Pipeline Length

Try to shorten the length of the pipe: the longer the pipe, the greater the resistance, the worse the heat dissipation effect.

Avoid too long pipes: If the pipe is too long, you can consider adding exhaust fans or changing the direction of the pipe.

3.3 Pipeline Direction

Avoid too many bends: Bends will increase air resistance and affect heat dissipation.

Reasonable layout: According to the site situation, reasonable layout of the pipeline direction to ensure that hot air can be smoothly discharged.

3.4 Pipeline Materials

Select high temperature resistant materials: exhaust pipes should choose high temperature and corrosion resistant materials, such as galvanized iron sheet, stainless steel, etc.

Heat preservation treatment: In a high temperature environment, the pipeline can be insulated to reduce heat loss.

3.5 Exhaust Air Outlet

Away from the air inlet: The exhaust outlet should be far away from the air inlet of the air compressor to avoid the return of hot air.

Avoid affecting others: The exhaust outlet should be set in a place that does not affect others' work and life.

3.6 Exhaust ducts are sealed

Ensure good sealing: The exhaust pipe should be sealed well to avoid air leakage and affect the heat dissipation effect.

Regular inspection: Check the pipe joints regularly to ensure that there is no loosening and no leakage.

The installation of exhaust ducts in air-cooled air compressors is an important measure to ensure the efficient and safe operation of equipment. Through the correct design and installation of exhaust pipes, the heat dissipation effect can be effectively improved, the operating temperature of the equipment can be reduced, the efficiency of the equipment can be increased, the life of the equipment can be extended, and the working environment can be improved. It is hoped that this paper can arouse the attention of the majority of users to the installation of exhaust pipe, and provide valuable reference and guidance.

In practical applications, users should formulate a reasonable exhaust pipe design scheme according to their own equipment characteristics and field conditions, and install and maintain in strict accordance with the specifications. Only in this way can we give full play to the performance of air-cooled air compressors, ensure their long-term stable operation, and provide reliable compressed air supply for enterprise production.

This paper describes in detail the necessity of installing exhaust pipes for air-cooled air compressors, and provides comprehensive design and installation suggestions to help users correctly manage and maintain equipment, improve production efficiency and reduce failure rate.
